{`#!/usr/bin/env python3
########################################################################
# Filename    : 2114TestMem.py
# Description : Test a 2114 Static Ram Memory For Errors
# Author      : rbettinelli
# modification: 3/29/2024
########################################################################
import gpiod
from signal import pause
import random

#var
addrCount = 1024
num = [0] * addrCount
wf = ["Write 0000","Write 1111","RANDOM 0000-1111"]
global a0,a1,a2,a3,a4,a5,a6,a7,a8,a9

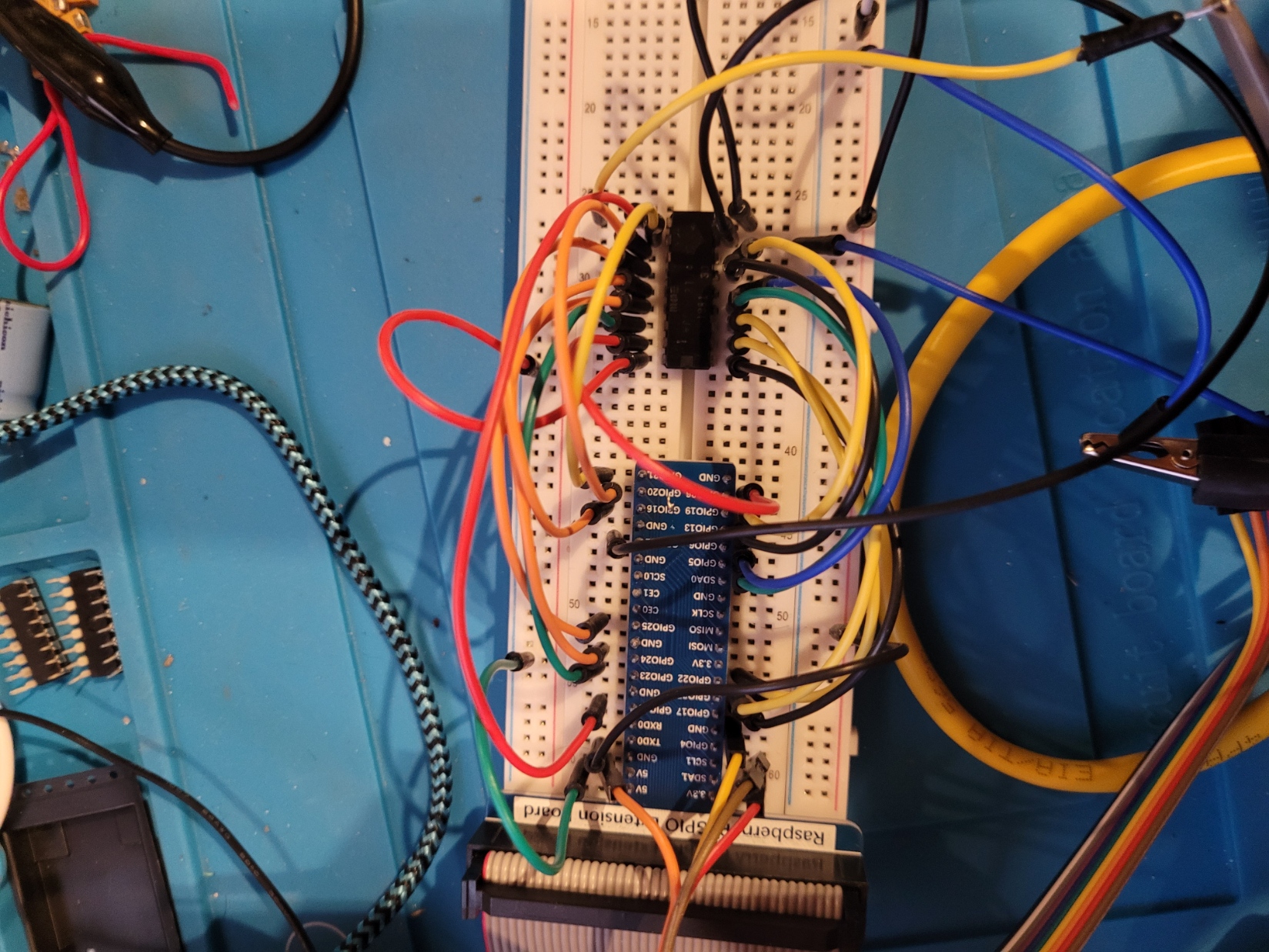

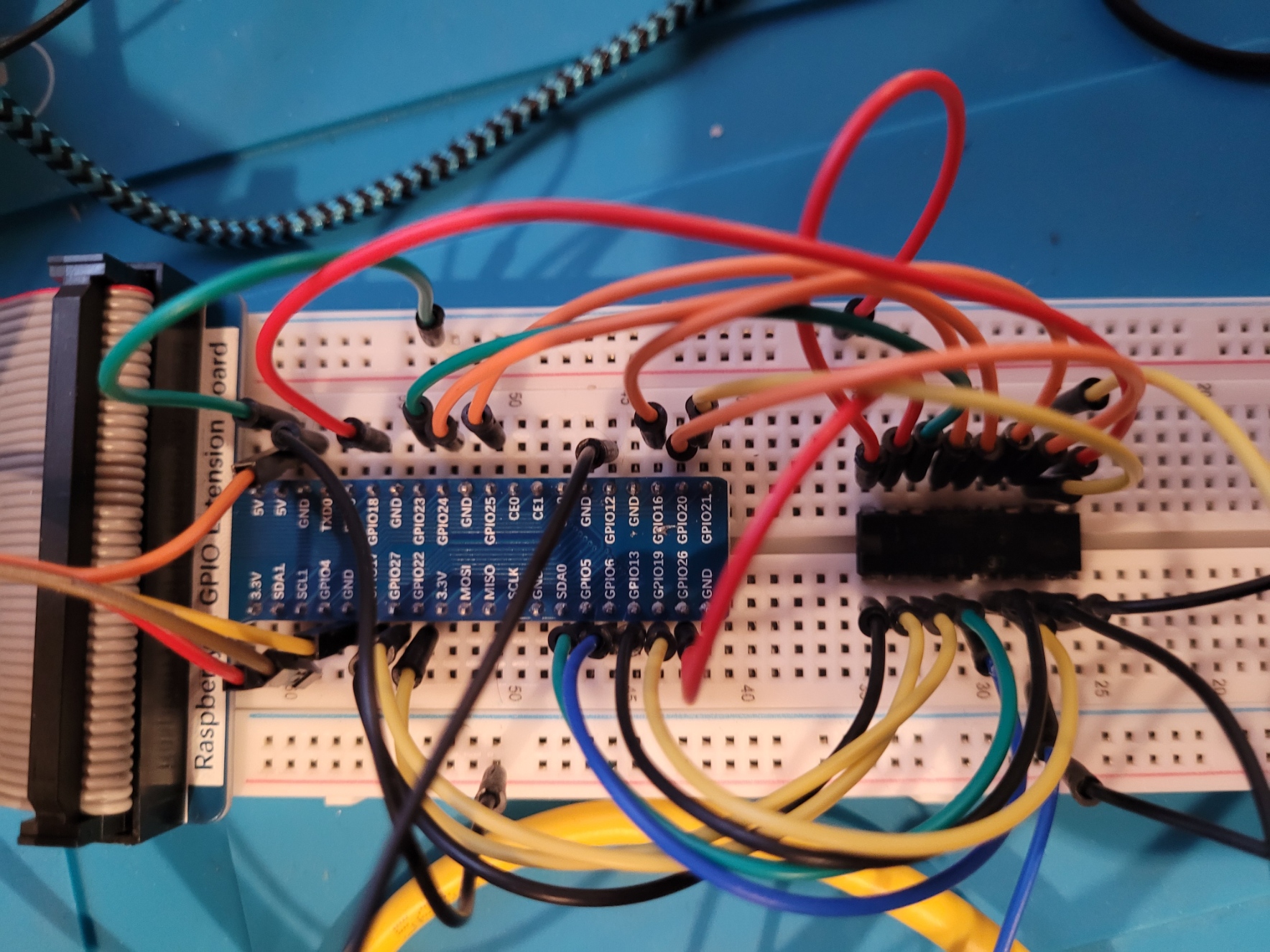

ax_lines= [6,13,19,5,22,27,17,26,23,24]

#Open gpiod & Set 2114 Address Lines and Chip Select and Write Enable Pins.
chip = gpiod.Chip('/dev/gpiochip4')
for idx, line_num in enumerate(ax_lines):
    globals()[f'a{idx}'] = chip.get_line(line_num)
    globals()[f'a{idx}'].request(consumer="chip a{idx} line", type=gpiod.LINE_REQ_DIR_OUT)
    globals()[f'a{idx}'].set_value(0)

cs = chip.get_line(12)
cs.request(consumer="chip cs line", type=gpiod.LINE_REQ_DIR_OUT)
cs.set_value(0)
we = chip.get_line(18)
we.request(consumer="chip we line", type=gpiod.LINE_REQ_DIR_OUT)
we.set_value(0)

# This is not called but to ensure working Pi
def my_Info(self):
    gpiod.is_gpiochip_device("/dev/gpiochip4")
    with gpiod.Chip("/dev/gpiochip4") as chip:
        info = chip.get_info()
        print(f"{info.name} [{info.label}] ({info.num_lines} lines)")

# Chip Select
def cs_High():
    cs.set_value(1)

def cs_Low():
    cs.set_value(0)

# Write Enable
def we_High():
    we.set_value(1)

def we_Low():
    we.set_value(0)

# Set Address Line
def set_Address( addr):
    binary_address = bin(addr)[2:].zfill(10)  # Convert address to binary string
    bout = ""
    for pin, bit in zip([a0, a1, a2, a3, a4, a5, a6, a7, a8, a9], binary_address):
        if bit == '1':
            pin.set_value(1)  # Turn pin on
            bout += "1"
        else:
            pin.set_value(0)  # Turn pin off
            bout += "0"


# Follow Chip Timing PDF To Write Data To Chip
# Keep in mind data Lines Are Set locally to allow for dynamic OUT / IN Swapover * Release Required.
def write_Data( addr, data):
    set_Address(addr)
    cs_Low()
    we_Low()
    binary_address = bin(data)[2:].zfill(4)
    d1 = chip.get_line(25)
    d1.request(consumer="chip d1 line", type=gpiod.LINE_REQ_DIR_OUT)
    d2 = chip.get_line(16)
    d2.request(consumer="chip d2 line", type=gpiod.LINE_REQ_DIR_OUT)
    d3 = chip.get_line(20)
    d3.request(consumer="chip d3 line", type=gpiod.LINE_REQ_DIR_OUT)
    d4 = chip.get_line(21)
    d4.request(consumer="chip d4 line", type=gpiod.LINE_REQ_DIR_OUT)
    bout = ""
    for pin, bit in zip([d1, d2, d3, d4], binary_address):
        pin.set_value(0)
        if bit == '1':
            pin.set_value(1)
            bout += "1"
        else:
            pin.set_value(0)
            bout += "0"
    #print(bout)
    cs_Low()
    we_Low()
    d1.release()
    d2.release()
    d3.release()
    d4.release()

# Follow Chip Timing PDF To Read Data From Chip
# Keep in mind data Lines Are Set locally to allow for dynamic OUT / IN Swapover * Release Required.
def read_Data( addr):
    set_Address(addr)
    cs_Low()
    we_High()
    d1 = chip.get_line(25)
    d1.request(consumer="chip d1 line", type=gpiod.LINE_REQ_DIR_IN)
    d2 = chip.get_line(16)
    d2.request(consumer="chip d2 line", type=gpiod.LINE_REQ_DIR_IN)
    d3 = chip.get_line(20)
    d3.request(consumer="chip d3 line", type=gpiod.LINE_REQ_DIR_IN)
    d4 = chip.get_line(21)
    d4.request(consumer="chip d4 line", type=gpiod.LINE_REQ_DIR_IN)
    b1 = d1.get_value()
    b2 = d2.get_value()
    b3 = d3.get_value()
    b4 = d4.get_value()
    binary_str = str(b1) + str(b2) + str(b3) + str(b4)
    decimal_value = int(binary_str, 2)

    cs_Low()
    we_High()
    d1.release()
    d2.release()
    d3.release()
    d4.release()
    #print(binary_str)
    return decimal_value

# Set Number Sequence to Check 1=0000, 2=1111, 3=Random 0000-1111, Write Data to RAM
def setNumseq(p):
    for x in range(addrCount):
        if p == 0:
            num[x] = 0
        elif p == 1:
            num[x] = 15
        elif p == 2:
            num[x] = random.randint(1, 15)
        write_Data(x, num[x])
        #print("Write : ",x, num[x])

# This Read from RAM and Compairs to Original Array.
# If OK .. great. If NOT it will show Error and then Percentage of Error (Just for the fun of it)
def check_num_seq():
    ok = 0
    for x in range(addrCount):
        k = read_Data(x)
        #print("Read : ",x,num[x],k)
        if (num[x] == k):
            ok += 1
        else:
            print("Read Error @ addr ",x, "Written : ",num[x],"Read :",k)
    if (ok == addrCount):
        print ("THIS WRITE FUNCTION OK!!")
    else:
        print("Read Error(s)! Count",ok,"/", addrCount," : ", 100-(ok/addrCount)*100,"%")

# Main Routine.
if __name__ == '__main__':

    #myChip.myInfo()
    print( "2114 Static Ram Tester.")
    print( "-----------------------")
    print( "rbettinelli 3-31-2024  ")
    print( "-----------------------")
    print( "Lets Test this RAM.")

    #Run all 3 Tests.
    for x in range(0,len(wf)):
        print("Testing ",x,")", wf[x])
        setNumseq(x)
        check_num_seq()

    print("End of Line.")
    `}
                </code>
              </pre>
            </Card.Content>
          </Card>

          <Card className="mb-2">
            <Card.Header className="border-b border-gray-300">App OUTPUT</Card.Header>
            <Card.Content>
              <pre>
                <code>
                  {`>>> %Run 2114TestMem.py
2114 Static Ram Tester.
-----------------------
rbettinelli 3-31-2024
-----------------------
Lets Test this RAM.
Testing  0 ) Write 0000
THIS WRITE FUNCTION OK!!
Testing  1 ) Write 1111
THIS WRITE FUNCTION OK!!
Testing  2 ) RANDOM 0000-1111
Read Error @ addr  0 Written :  2 Read : 8
Read Error @ addr  1 Written :  6 Read : 8
Read Error @ addr  3 Written :  9 Read : 8
Read Error @ addr  7 Written :  7 Read : 8
Read Error @ addr  31 Written :  3 Read : 8
Read Error @ addr  63 Written :  4 Read : 8
Read Error @ addr  127 Written :  15 Read : 8
Read Error(s)! Count 1017 / 1024  :  0.68359375 %
End of Line.`}
